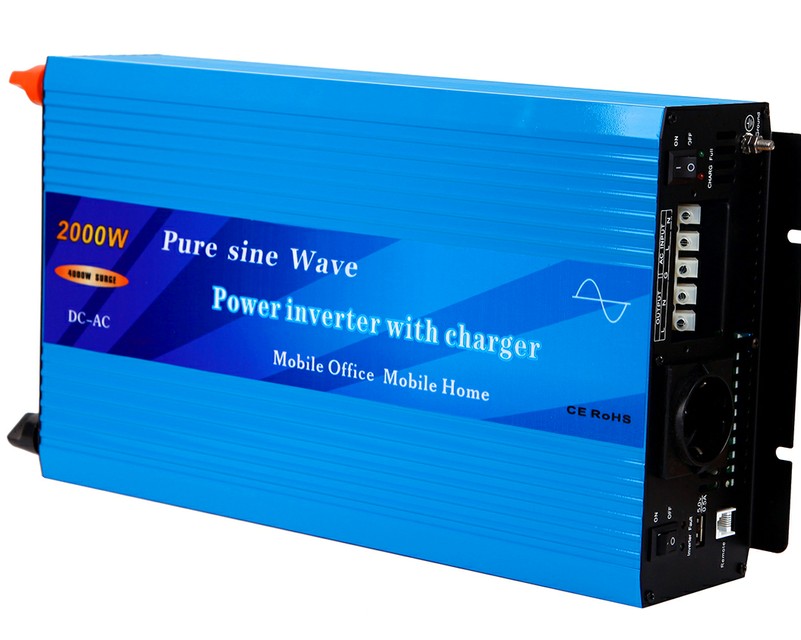

2000W Pure Sine Wave Power Inverter with built-in charger and auto transfer switch

2000W Pure Sine Wave Power Inverter with built-in charger and auto transfer switch Inverter with Charger can provide your equipment with utility-supplied AC power when it is available, and during blackouts and brownouts, the unit will automatically switches over to an external battery source to power connected equipment with voltage and frequency-controlled AC power. Inverter with Charger will be a very good back-up power for the Grid, which can automatically transfer the power to battery when the Grid was off or cut.
Product Features

Built-in Charger, Built-in Auto Transfer Switch

External Fuses, Remote Control, USB interface (5V/0.5A).

Protection:Overload, Short Circuit, Reverse Polarity,Over/Under Input Voltage, Over Temperature

CE and RoHS Approved.

Model : TYPC-2000 TYPC-2000-12V TYPC-2000-24V TYPC-2000-48V
AC Output  Continuous power:    2000W
Surge power:    4000W
120%<Load<150% Rated power for 10s
150%<Load<200% Rated power for 2s
Output Waveform  Pure Sine Wave (THD < 3%)
Output Frequency   50Hz±0.1% or 60Hz±0.1% (Optional)
AC Output Voltage 100~120VAC / 200~240VAC (Optional)
DC Iutput DC Input Voltage 12V DC 24V DC 48V DC
Voltage Range 10V-15V 20V-30V 40V-60V
Low Voltage Alarm 10.5V± 0.5V 21V±1V 42V±2V
Low Voltage Shut down  10V±0.5V 20V±1V  40V±2V
Over Voltage Shut down  15V±0.5V 30V±1V 60V±2V
Charger Spec. AC Input voltage AC 100V-120V±10%
AC 220V-240V±10%
DC Charging Voltage 12V 24V 48V
DC Charging Current 20A 10A 5A
Three-stage Charging Bulk/Absorption/Float charge
Automatically Switching Time ≤40ms
Converting Max. Efficiency 90% (Full Loading) / 95% (1/3 Loading)
No Load Consumption < 0.65A < 0.32A < 0.16A
Protection Over Thermal:     Shut Off Output Automatically, Temperature >75℃
Short circuit protection:  Reverse Polarity (External Fuse)
Cooling Fan automatically run  Temperature ≥45℃
 Environment Working temperature  -10℃~+50℃
Working humidity  20%~90% RH  Non-Condensing
Storage Temperature Range  -30℃~+70℃
LED Indicator Light Inverter, Fault
Packing  Inner Box Dimensions (mm) 484*286*168 mm 2pcs /Carton
Inner Box Weight (kg) 8 kg
Carton Dimensions (mm) 500*305*355 mm
Carton Weight (kg) 17 kg
