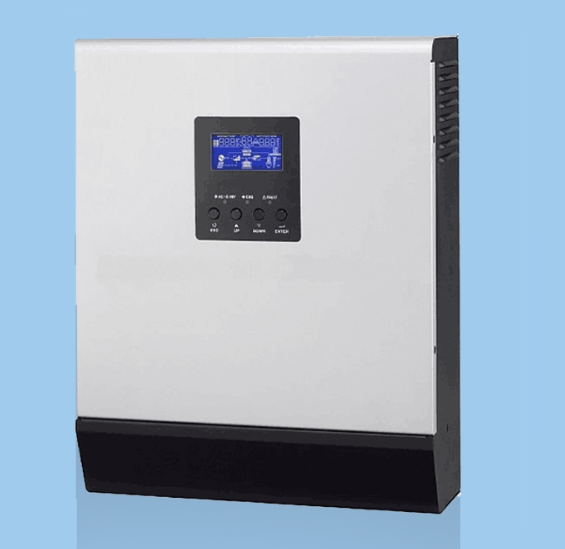

(PWM) 1000VA-5000VA Hybrid solar Inverter With PWM and Battery charger
This is a multi-functional inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Specifications
| Hybrid Solar Inverter with PWM and Battery Charger | ||||
| Model NO. | PWM-1K-12V | PWM-3K-24V | PWM-5K-48V | |
| Capacity VA | 1000VA | 3000VA | 5000VA | |
| Capacity W | 800W | 2400W | 4000W | |
| Input | Voltage | 230 VAC | ||
|
Voltage selectable range (for Personal Computer) |
170~280 VAC | |||
|
Voltage selectable range (for home appliance) |
90~280 VAC | |||
| Frequency range | 50Hz/60Hz (Auto sensing) | |||
| Output |
AC voltage Regulation (Batt.Mode) |
230V AC ± 5% | ||
| Surge Power | 2000VA | 6000VA | 10000VA | |
| Efficiency (Peak) | 90% | 93% | ||
| Transfer time | 10ms (for personal computer),20ms (for home appliance) | |||
| Wave form | Pure sine wave | |||
| Battery Charger | Battery voltage | 12VDC | 24VDC | 48VDC |
| Floating charge Voltage | 13.5VDC | 27VDC | 54VDC | |
| Overcharge Protection | 15VDC | 30VDC | 60VDC | |
| Maximum Charge Current | 10A or 20A | 20A or 30A | 20A or 30A | |
| PV Input | Charge current | 50A | ||
| Maximum PV Array Open Circuit Voltage | 30 VDC | 60 VDC | 90 VDC | |
| Standy powr consumption | 1W | 2W | 2W | |
| Package | Dimension, D×W×H (mm) | 95×240×316 | 100×272×355 | 120×295×468 |
| Net Weight (Kgs) | 5 | 6.9 | 9.8 | |
| Environment | Humidity | 5%~95% Relative Humidity (Non-condensing) | ||
| Operation Temperature | 0℃~55℃ | |||
| Storage Temperature | -15℃~60℃ | |||
